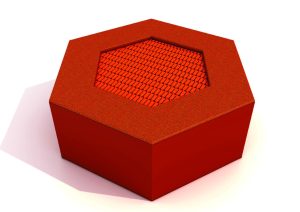

AK099

Basic Info

• Product Weight: 230 kg

• Installation Type: Directly buried in pit

• Minimum Pit Depth: 500 mm

Materials

• Frame: Hot-dip galvanized carbon steel

• Mesh Module: Polyurethane (non-toxic, flame-retardant, weather-resistant)

• Springs: Silicon manganese spring steel (25×140 mm)

• Connectors & Wire Rope: Stainless steel

• Surface Material: EPDM (anti-slip, shock-absorbing, wear-resistant)

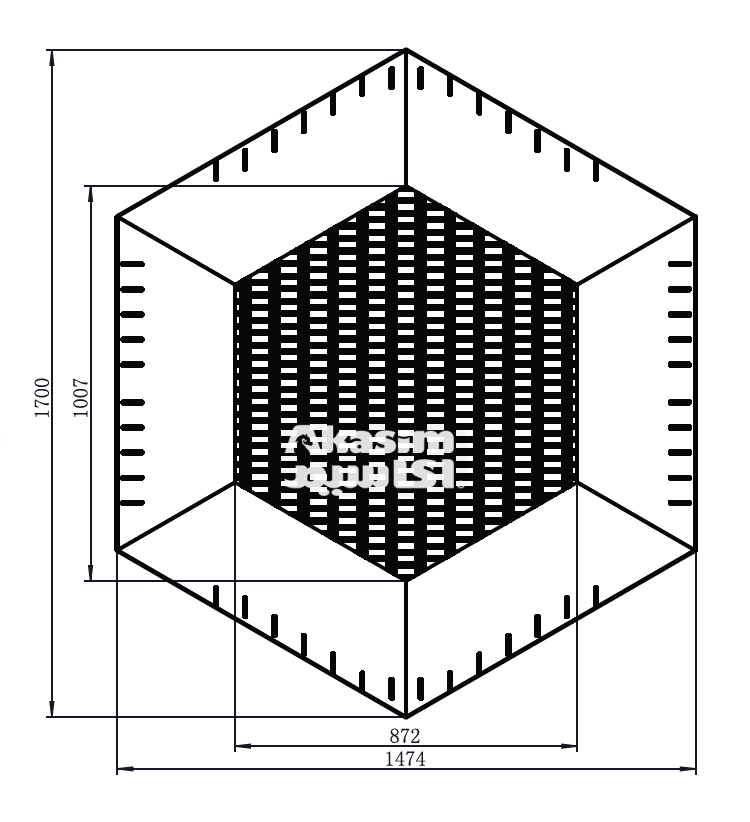

Specifications

• Buffer Layer Size: 300×25 mm

• Steel Plate Thickness (Load & Base): 5 mm

• Edge Radius: ≥ 3 mm

• Mesh Gap: < 8 mm (safety optimized)

Performance

• Aging Test: 900h xenon lamp – no fading/cracks

• Fatigue Test: 100,000 cycles – no wire breakage or deformation

• Maintenance: Maintenance-free design
